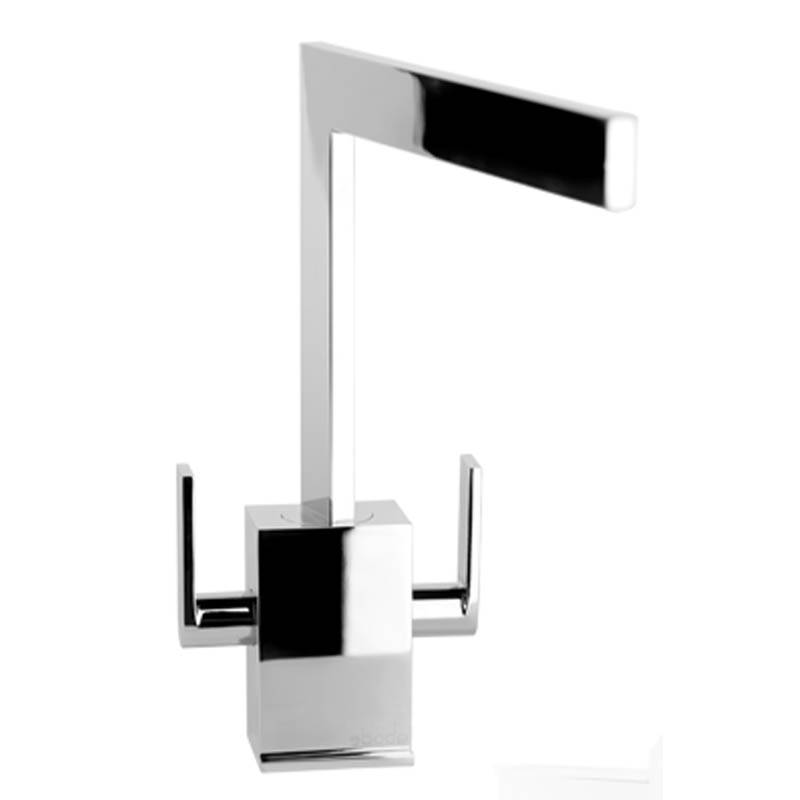

Edge Monobloc by Abode

The Edge Monobloc mixertap takes its design styling from contemporary kitchen design. Smooth on the eye and smooth to the touch, Edge will look stunning in every contemporary home

Images are for illustrative purposes only

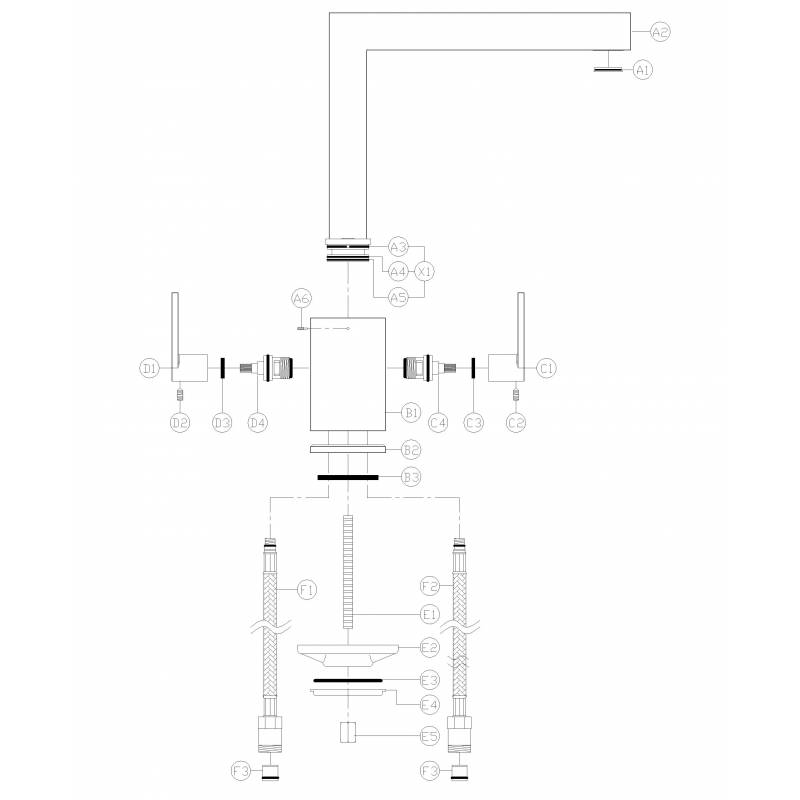

View the above diagram as a PDF

Edge Monobloc by Abode

AT1158

The Edge Monobloc mixertap takes its design styling from contemporary kitchen design. Smooth on the eye and smooth to the touch, Edge will look stunning in every contemporary home

Available in:-
Chrome - AT1158
Brushed Nickel - AT1159
Granite Black - AT1195

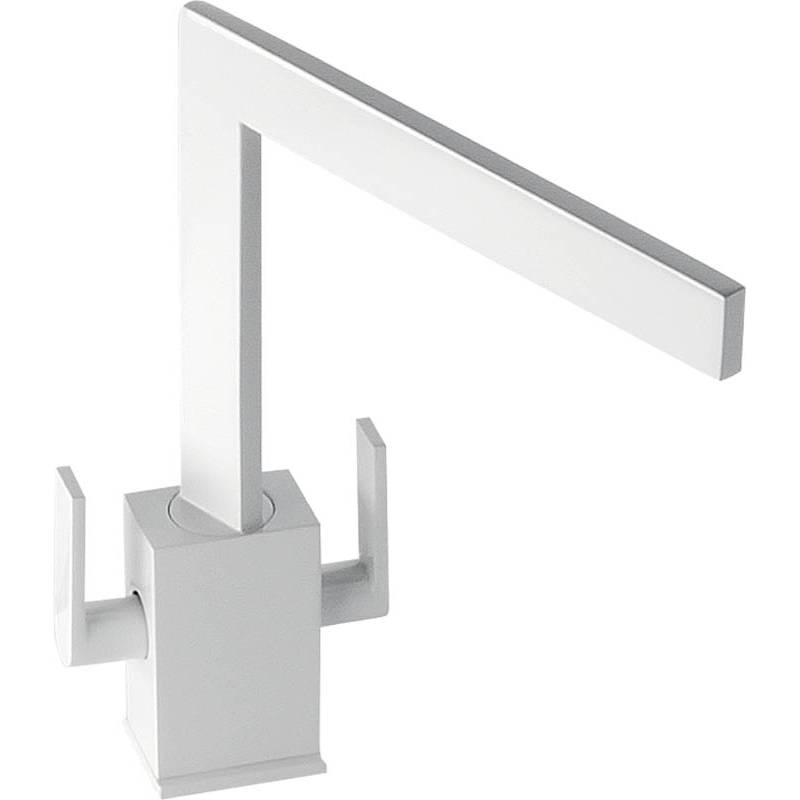

Gloss White - AT1196

Parts
Description

O Rings & Washers

	Spout O Ring Set SP3527£6.00 DIAGRAM REF: X1. Suitable for AT1148, AT1149, AT1193, AT1194, AT1158, AT1159, AT1195, AT1196, AT1180, AT1181, AT1182, AT1183, AT1220, AT1221, AT1232, AT1233, TAP9101, TAP9103, TAP3580, TAP3582, TQC1 and TQSL1.	£6.00	Buy

Handles & Levers

	Edge Handles Chrome Finish Pair SP3309-CH-PAIR£27.74 DIAGRAM REF: C1 to C1 and D1 to D2. Suitable for AT1158	£27.74	Buy

Tail Pipes

	M12 Copper Tail Pipes SP1234£14.00 DIAGRAM REF: F1 and F2.	£14.00	Buy

Valves & Cartridges

CD Valves 8mm-24 Spline Pair SP3794-PAIR£31.20 DIAGRAM REF C4 and D4. Suitable for AT1158, AT1159, AT1195, AT1196, AT1200, AT1221 and TQC1.	£31.20	Buy
CD Hot Valve 8mm-24 Spline SP3794-H£19.50 DIAGRAM REF: D4. Suitable for AT1158, AT1159, AT1195, AT1196 and TQC1.	£19.50	Buy
CD Cold Valve 8mm-24 Spline SP3794-C£19.50 DIAGRAM REF: C4. Suitable for AT1158, AT1159, AT1195, AT1196 and TQC1.	£19.50	Buy
