Ludlow Bridge / Elegance by Abode

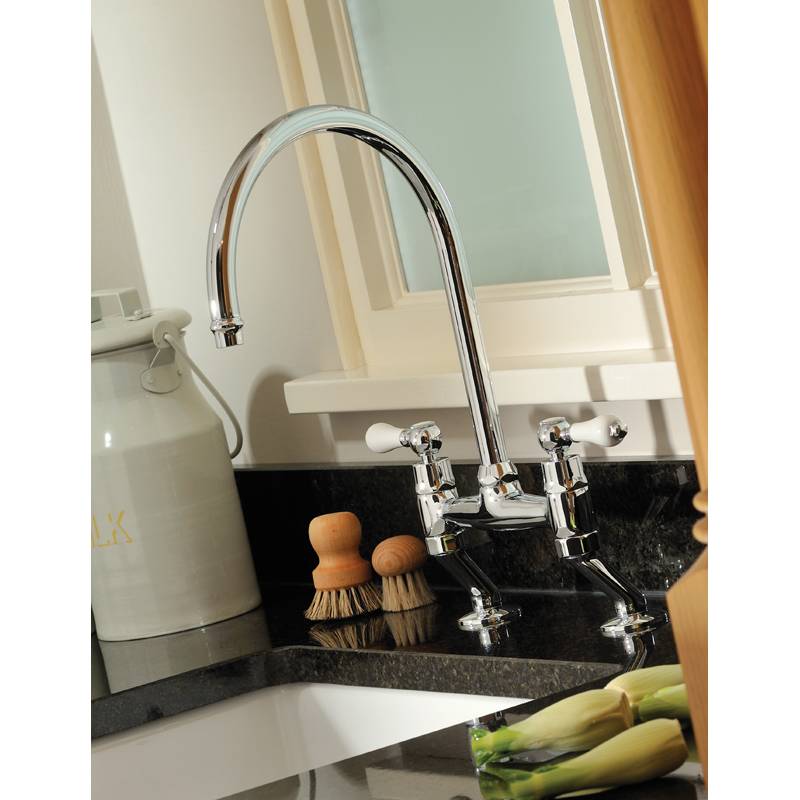

The Ludlow Bridge mixertap is a timeless Victorian inspired design featuring the timeless white lever handle design. Please note that this model has two versions of valves dependent upon the age of the tap. If unsure please call us directly through the contact us form above.

Images are for illustrative purposes only

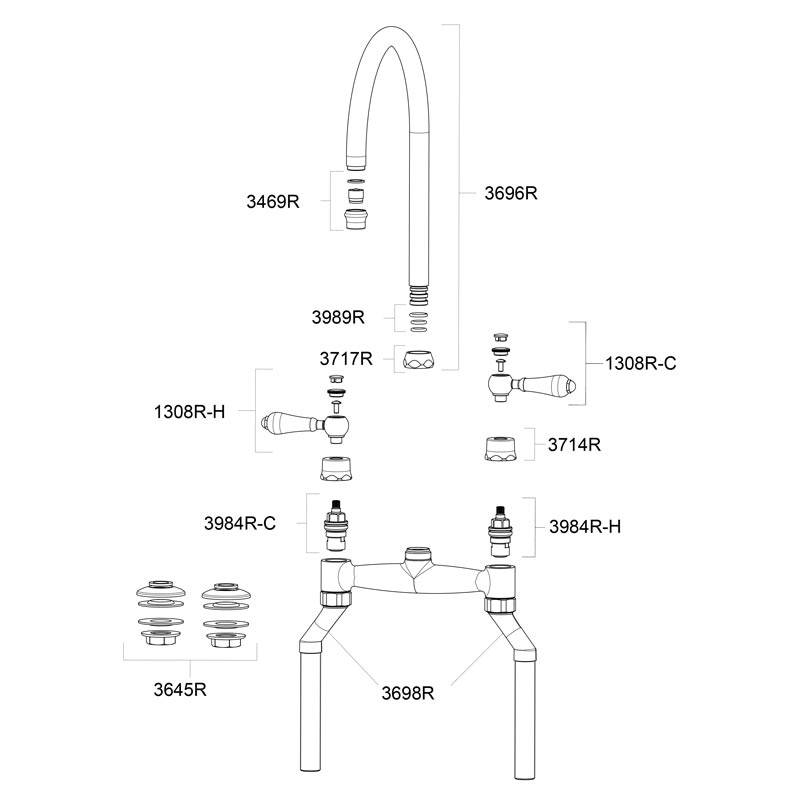

View the above diagram as a PDF

Ludlow Bridge / Elegance by Abode

AT1029

Available in:-
Chrome - AT1029
Brushed Nickel - AT1217
Antique Brass - AT1031

Parts
Description

Valves & Cartridges

CD Valves 8mm-24 Spline Pair - Pre 2010 SP-3001-AD1-PAIR£31.20 DIAGRAM REF: B6 and C6.	£31.20	Buy
CD Hot Valve 8mm-24 Spline - Pre 2010 SP-3001-AD1HV£19.50 DIAGRAM REF: C6.	£19.50	Buy
CD Cold Valve 8mm-24 Spline - Pre 2010 SP-3001-AD1CV£19.50 DIAGRAM REF: B6.	£19.50	Buy
CD Valves 8mm-20 Spline Pair - Post 2010 SP3984-PAIR£31.20 DIAGRAM REF: B6 and C6.	£31.20	Buy
CD Hot Valve 8mm-20 Spline - Post 2010 SP3984-H£19.50 DIAGRAM REF: C6.	£19.50	Buy
CD Cold Valve 8mm-20 Spline - Post 2010 SP3984-C£19.50	£19.50	Buy

Handles & Levers

Ludlow Handles Chrome Finish Pair SP1308-CM-PAIR£27.74	£27.74	Buy
Handle Chrome - Cold SP1308-C-CH£17.34	£17.34	Buy
Handle Chrome - Hot SP1308-H-CH£17.34	£17.34	Buy
